Transformer Ground/Earth System Tester

  • JYQ  Extra-ground current impuision equipment
JYQ  Extra-ground current impuision equipment

JYQ Extra-ground current impuision equipment

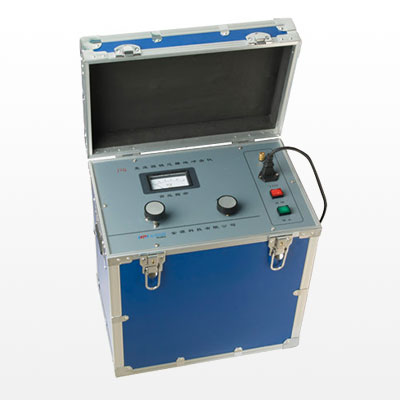

  • Product description: JYQ extra-ground current impuision equipment
  • INQUIRY

Generally, the way of finding out the iron core ground false of power transformer is always inefficient, while the method of using the traditional measure such as increase powerful current by welder when finding the false point of transformer.

The transformer needs to be mended on the spot or return to the factory if it can not melt off the point because of low voltage. It will spend high transportation fee and dealing costs, brings huge economic loss.

The JYQ iron-core impulsion equipment is the intelligence set for exclusive using in solving the false of transformer. It can output high-voltage powerful current transient and melt the ground point off rapidly.


TECHNOLOGY SPECIFICATION:

Output voltage

0-6kV Continuously adjustment

Output capacity

2μFlayout external capacitance to enlarge capacity

Display

Pointer voltmeter

Power supply in operation

AC220V±10%, 50Hz

Temperature in operation

-20~40℃

Relative humidity

80%RH, No forming dew

Net weight

20 kg
