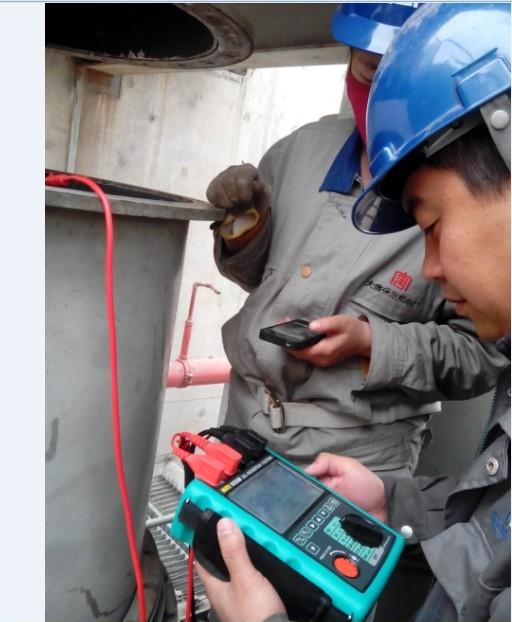

Handheld Winding Resistance Tester

  • Portable winding resistance tester
  • Portable winding resistance tester
Portable winding resistance tester Portable winding resistance tester

Portable winding resistance tester

  • Product description: 1. Handheld winding resistance meter 2. Conversion function for standard temperature resistance. 3. 500 test data can be saved and download by flash disk. 4. Temperature testing function.
  • INQUIRY
UNCTION INTRODUCTION:

JYR-9310 transformer winding resistance tester is suitable for the sensibility items(such as transformer, mutual inductor, motor, etc), and is also suitable for the measurement of the resistive items ( such as copper bar, electirc wire, switch contact, etc), and is equipped with the special probe for temperature measurement.


Six-switch output current selection.


9310 DC winding resistance tester is provided with the temperature conversion function. By entering the sample material ( copper/aluminum ) and sample temperature, the instrument can be able to automatically convert them to the resistance values under the standard temperature ( 20℃, 75℃, 120℃ ).


9310 DC winding resistance tester is provided with the data storage function, 500 groups of experimental data can be stored within the instrument.


9310 DC winding resistance tester is provided with is equipped with USB interface, the data can be imported in the USB.




TECHNOLOGY SPECIFICATION:

Tester type

JYR9310

Scope of application

10A

3A

1A

0.3A

0.1A

5mA

Test range

0Ω~0.1Ω

0.01Ω~2Ω

0.03Ω~6Ω

0.1Ω~20Ω

0.3Ω~60Ω

30Ω~20

Accuracy

0.10.5μΩ

Minimum resolution

0.1μΩ

Built in battery

11.1V ; Capacity:4500mmAh

Standard conversion temperature

20℃/75/120℃

Temperature test range

-99.9~199.9 ; Accuracy: ±0.5% (JYR9311 only)

Volume

Length 155mm Width 210mm Height 68mm

Net weight

1.66KGS
