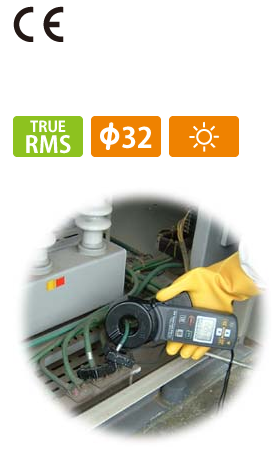

KEW model 4200 Earth Clamp Tester

• The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes. (The Multiple Earthing System.)
• True RMS Accurate true RMS readings of AC current including distorted waveform from 1mA to 30.0A
• Noise Check Function A function to detect current, which effects on an earth resistance measurement and display
• Compliant with Safety Standards of IEC 61010-1 : CAT IV 300V Pollution degree2
Product description: KEW 4200 Earth Clamp Tester
INQUIRY

• The earth resistance from 0.05 to 1500Ω can be measured without the auxiliary earth spikes.
(The Multiple Earthing System.)
• True RMS
Accurate true RMS readings of AC current including distorted waveform from 1mA to 30.0A
• Noise Check Function
A function to detect current, which effects on an earth resistance measurement and display "NOISE" mark on the LCD.
• Memory function
Save and display up to 100 measurement data.
• Data hold function / Buzzer function / Back light function
• Compliant with Safety Standards of IEC 61010-1 : CAT IV 300V Pollution degree2

Note:

A single earthing can not be measured. (Only for Multiple Earthing System)

Now we have promotion activity as below:

1. Buy any Kingrun tester, will get a KEW2200 clamp meter for Free!!

2. You will get 5% discount by online inquiry(just click the green”INQUIRY”bottom and put into your specific inquiry).

3. 2 Years warranty period. Whole lifetime maintenance.

4. 24h online technical support.

Earth resistance Auto range	20.00/200.0/1500Ω ±1.5%±0.05Ω(0.00 - 20.99Ω)* ±2%±0.5Ω(16.0 - 99.9Ω) ±3%±2Ω(100.0 - 209.9Ω) ±5%±5Ω(160 - 399Ω) ±10%±10Ω(400 - 599Ω)
AC current (50Hz/60Hz) Auto range	Values are displayed, but accuracy isn't guaranted(600 - 1580Ω) 100.0/1000mA/10.00/30.0A ±2%±0.7mA(0.0 - 104.9mA) ±2%(80mA - 31.5A)
Operating indication	Earth resistance function : Constant voltage injection Current detection (Frequency : Approx.2400Hz) Dual Integration AC current function : Successive approximation
Over-range indication	"OL"is displayed when input exceeds the upper limit of a measuring range
Response time	Approx. 7 seconds (Earth resistance) Approx. 2 seconds (AC current)
Sample rate	Approx. 1 times per second
Current consumption	Approx. 50mA (max.100mA)
Measurement time	Approx.12 hours (when R6 is used) Approx.24 hours (when LR6 is used)
Auto power-off	Turns power off about 10 minutes after the last button operation.
Conductor size	Approx. Ø32mm
Applicable standards	IEC 61010-1 CAT Ⅳ 300V Pollution degree2 IEC 61010-2-032, IEC 61326 (EMC)
Power source	DC6V : R6(sizeAA manganese battery) x 4 or LR6 (sizeAA alkaline battery) x 4
Dimensions	246(L)×120(W)×54(D)mm
Weight	Approx. 780g (including batteries)
Included Accessories	R6 x 4, Instruction manual 8304 (Resister for operation check) 9166 (Carrying case[Hard])
