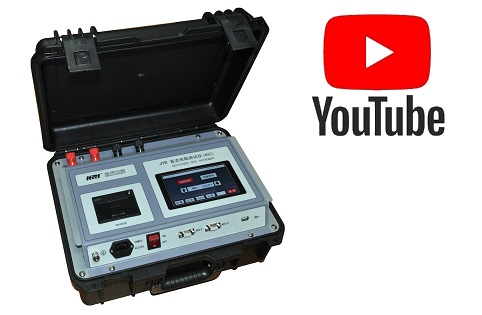

DEMO VIDEO:
FUNCTION INTRODUCTION:
● Output current: 20mA～50A
● Measuring range: 0～20kΩ, the instrument can measure the DC resistance of the inductive products such as the transformers and instrument transformers.
● Auxiliary judgment of data stabilizing function. Automatically calculate the percentage deviation of resistance value of 5s, 15s and 30s, accurately determine the reliability of data, and prevent misreading data.
● The temperature conversion can be made according to the material(Copper/Aluminum) of the tested products, so that it is convenient to compare with the historical data.
● With transformer demagnetization function, it can reduce residual magnetism of transformer.
● With a permanent calendar, 99 sets of data storage, Chinese and English interface selection function, power failure without data loosing, mini printer and U disk interface.
● With 6 inch color touch LCD display screen.
● Dual RS485 (RS232) communication interface, with PC control software, the instrument can realize remote control measuring.
● With the discharging alarm by sound and the discharging indicating clearly function, the mis-operation can be reduced.
● With AC380V misconnection protection function,perfect back EMF protection function and anti-arcing function.
● It has the features of dustproof, shockproof, moisture-proof, high precision, good repeatability and portability.
|
Tester Type |
JYR-20C/40C/50C |
||
|
Configuration |
20C |
40C |
50C |
|
Output current |
Auto,20A, 10A, 5A, 2A, 1A, 200mA,100mA, 20mA |
Auto,40A, 20A, 10A, 5A, 2A, 1A, 200mA,100mA, 20mA |
Auto,50A, 20A, 10A, 5A, 2A, 1A, 200mA,100mA, 20mA |
|
Range |
0～20kΩ |
||
|
Accuracy |
0.2%±0.1µΩ |
||
|
Min. resolution |
0.01µΩ |
||
|
Output voltage |
DC30V |
||
|
Operation power |
AC220V±10%, 50 Hz±1Hz |
||
|
Operation temperature |
-20℃～40℃ |
||
|
Relative humidity |
≤80%RH, no dew |
||
|
Volume |
L420mm* W320mm * H200mm |
||
|
Net Weight |
14.8kg |
||

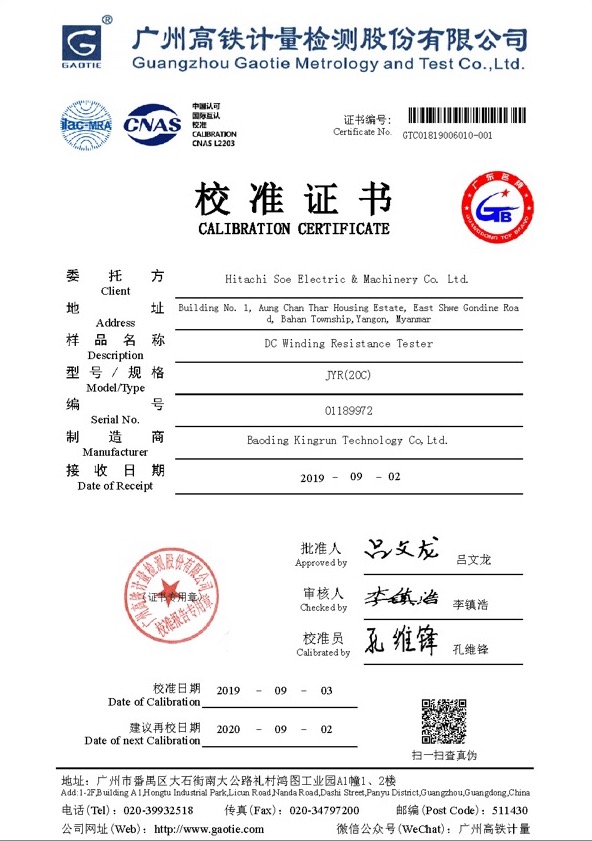

CALIBRATION CERTIFICATE:
