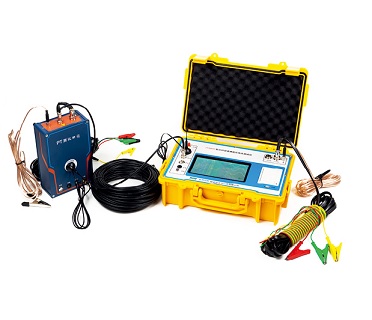

JY6800 Zinc Oxide Arrester Tester

PT signals over 400m, Max.2000m
Simultaneous testing of three-phase current / voltage
Support wired synchronization and wireless synchronization
Built-in high-energy lithium-ion battery
Product description:
INQUIRY

Y6800 Zinc Oxide Arrestor hot-line Tester is a special instrument for testing the electrical performance of Zinc Oxide Arrestor. This instrument is suitable for hot-line or power failure detection of various voltage levels of Zinc Oxide Arrestor, so as to find out the dangerous defects such as: dampness of the internal insulation of the equipment and the aging of the valve plate in time.

Features:

1. With 800×480 color LCD touch screen, high-speed thermal printer; graphic display,
Intuitive interface, easy to operate and use by field personnel
2. Wireless transmission of PT signal over 400 meters, up to 2000 meters with on-demand configuration
3. It is suitable for use in places such as lightning arrestor hot-line, power failure or laboratory
4. Simultaneous testing of three-phase current and three-phase voltage improves work efficiency; supports single-phase testing or two-phase testing at the same time.
5. Support wired synchronization and wireless synchronization two voltage reference signal sampling methods; also support no voltage mode, find the voltage reference through software calculation
6. Built-in high-energy lithium-ion battery, especially suitable for occasions without power
7. Equipped with embedded man-machine interface, support direct shutdown mode; equipped with a USB
Interface, support U disk to export data

8. Supporting upper-level management software, with functions such as historical data management, recalculation, data analysis, report printing, etc.

Y6800 Zinc Oxide Arrestor hot-line Tester Specification:

Power	220V、50Hz or Internal battery supplement
Test Range
Leakage Current	0-10mA
Voltage	30-100V
Test Accuracy
Current	full current>100μA: ±5% & ±1 byte
Voltage	reference voltage signal>30V： ±5% & ±1 byte
Voltage reference signal sampling method
Wire synchronization	40 meters（expandable）
Wireless synchronization	>400 meters（expandable）
Battery parameters
Charge time	> 6 hours
Continuous working time	> 4 hours
Discontinuous working time	> 8 hours
