Transformer Insulating Oil Tester

JY6611S Transformer oil breakdown tester

Product description: 1. Never crash 2. High testing precision 3. New type oil cup 4. Complete protection system:
INQUIRY

JY6611S transformer oil breakdown tester adopts completely new electromagnetic compatibility concept(EMC) which designed to avoid tester crash accident during testing, and also can still work well in high magnetic field.

JY6611S also use advanced voltage breakdown control technology which will keep breakdown energy in a very low level,that will avoid pollution to oil sample during testing and make sure the test result are accurate and reliable.

FUNCTION INTRODUCTION
1. Never crash:
JY6611S adopts electromagnetism compatibility(EMC) to avoid tester crash in test process. The instrument can work well in high-intensity electromagnetic environment
2. High precision:
JY6611S adopts completely new breakdown voltage control technology to make the breakdown discharge energy to the lowest,which avoid oil sample pollution during test process and make test results reliable and accurate.

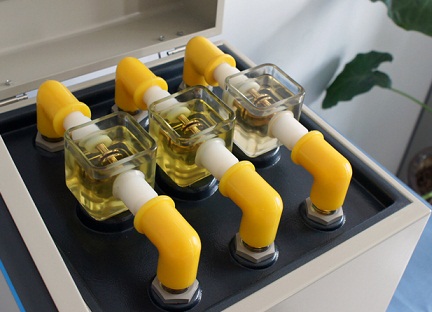

3. New type oil cup:
JY6611S oil cup is made by new material with high strength and long service life to avoid fragile and leakage problem during testing.
4. Complete protection system:
JY6611S has a variety of protection devices which will make sure the safety of operator and tester itself in accident like inferior oil breakdown and empty cup breakdown.

High performance of MPU (microprocessor) can provide high precise data and fast calculation.

Oil test cup made from advanced material which is high intensity with long working life.

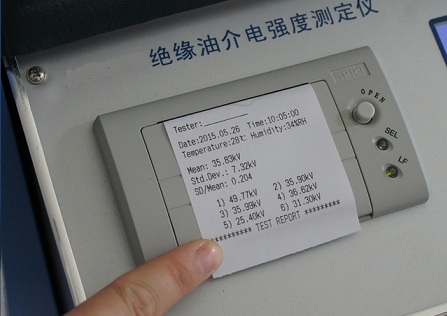

Thermosensitive printer provide fast and clear tested value printing.

TECHNOLOGY SPECIFICATION:

Type	JY6611S oil break down voltage(BDV) tester
Output voltage	0~80kV/100kV
Minimum resolution	0.1kV
Accuracy	Reading±0.2kV
Voltage raise speed	1 .0/2.0/3 .0kV/s for option
Switch-off time on breakdown, ms	≤1ms
Experimental times	1～6 for option
Programmed test standard	IEC60156/ASTM D877/ASTM D1816/VDE0370
Memory for result	500 group
Volume of the oil cup	400ml/200ml
Gap between the poles	2.5mm (Electrode gap is adjustable)
Temperature in operation	0~40℃
Relative humidity	≤80%RH, No forming dew
Power supply in operation	AC220V±10%, 50Hz±1%
Volume / Weight	Length 385mm Width 300mm Height 360mm / 22kgs
