JYK II Circuit Breaker Analyzer

Circuit Breaker timing test
CB timing test
switching characteristic test
Used for SF6 switchgear, GIS combination of electrical, vacuum switch, oil switch and column switches, contacts and so on
Product description: Circuit Breaker Analyzer,CB Analyzer,Circuit Breaker timing test,CB timing test
INQUIRY

Now we have promotion activity as below:

1. Buy any Kingrun tester, will get a KEW2200 clamp meter for Free!!

2. You will get 5% discount by online inquiry(just click the green”INQUIRY”bottom and put into your specific inquiry).

3. 2 Years warranty period. Whole lifetime maintenance.

4. 24h online technical support.

Function Introduction

•Instrument IPC architecture for domestic production of all models of metal contacts SF6 switchgear, GIS combination of electrical, vacuum switch, oil switch and column switches, contacts and so on.

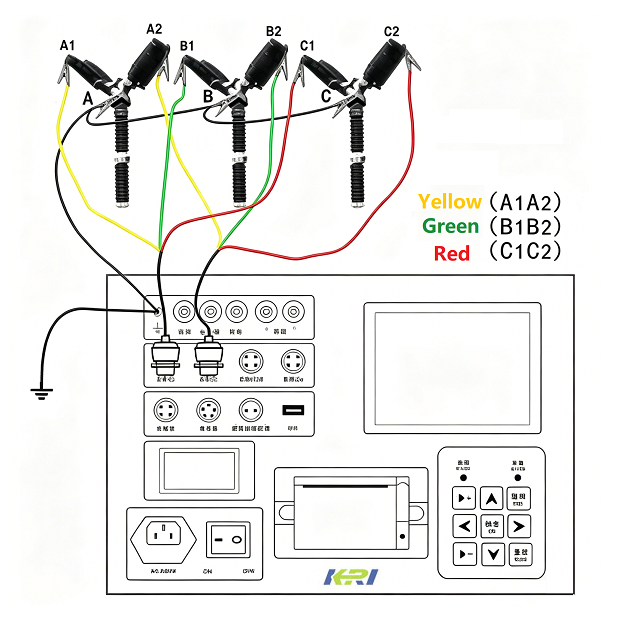

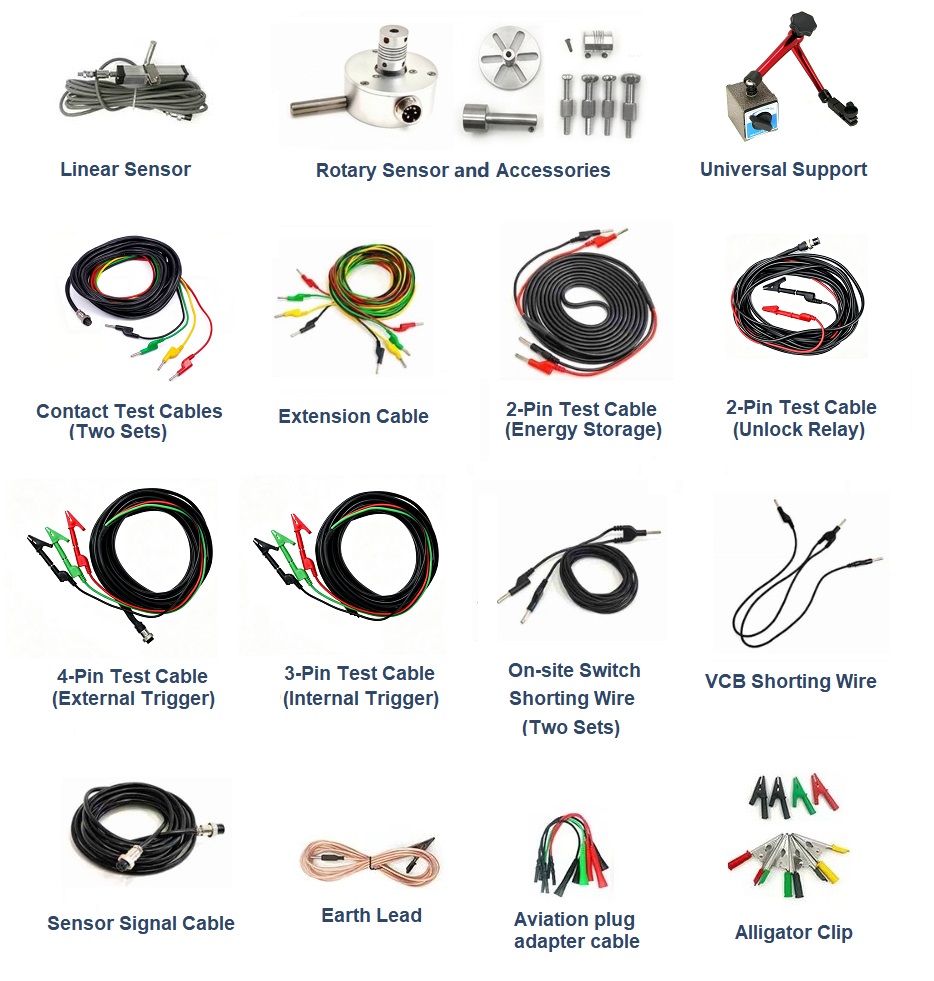

•Sensor: Acceleration speed sensor, rotation speed sensor, linear stroke sensorinstallation is very easy and simple.

•Trigger: The trigger, external trigger, the sensor is triggered. Sensor can trigger the circuit breaker manually switching characteristic test, such as a manual column pole division switch.

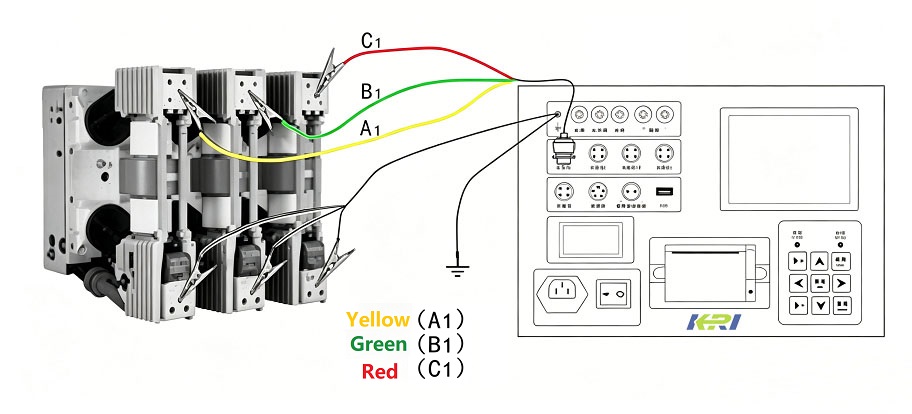

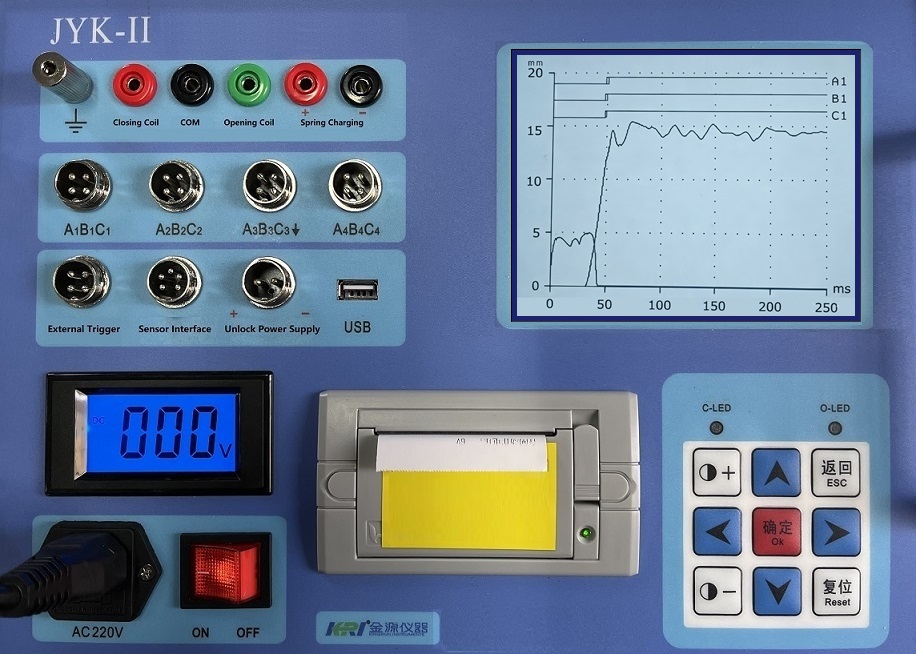

•Host big screen, straight-through, wide temperate backlit LCD, contrast electronic adjustment. Perfect full Chinese menu prompts, switch action once all the data and waveform display maps.

•Host can store 100 groups live points, closing test results, real-time clock inside, easy to archive storage test date and time.

•Instrument has a powerful data analysis capabilities, to the circuit breaker parameters of the mechanical properties of the indicators for effective analysis. Built-in fast micro-printer, print all data and maps The instrument has automatic discharge circuit and over voltage protection circuit.

Service condition	Input power	220V±10% 50Hz±10%
	Atmospheric pressure	86~106kpa ℃
	Temperature	-20~45℃
	Humidity	<80%RH no dew
Security	Insulation resistance	>2MΩ
Security	Dielectric strength	1.5KV power on the chassis power frequency withstand voltage for 1 minute, no flashover and arcing.
Basic parameters	Time	Range: 64000.0ms, Error: ≤ 0.1%read± 0.1 Resolution: 0.1ms
	Speed	Range: 20.00m/s, resolution 0.01m/s error: error ≤ 1%read ± 0.1
	Range	Vacuum Circuit Breaker: range-50.0mm; resolution-0.1mm; error-≤1％read±1mm SF6 Circuit Breaker: range-300.0mm; resolution-0.1mm; error-≤1％read±1mm Oil Curcuit breaker: range-800.0mm; resolution-0.1mm; error-≤1％read±1mm
	Coil Current	Range: 30.00A; resolution: 0.01A; error ≤ 1% read± 1
	Output power	DC0 ~ 270V digital adjustable / 20A ; Resolution 1V; error ≤ 1%read± 0.5
	Dimension	340mm (L) × 240mm (W) × 210mm (H)
	Weight	10.3kg
