Transformer Winding Resistance Tester

  • JYR-50C/40C/20C Winding resistance tester

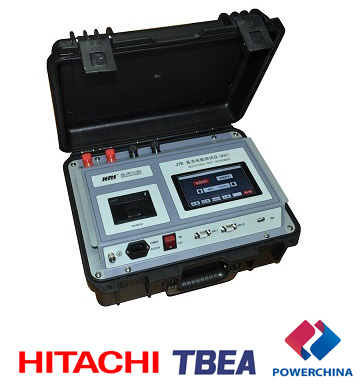

JYR-50C/40C/20C Winding resistance tester

JYR-50C/40C/20C Winding resistance tester

  • Product description: 1. With single chip microcomputer control. 2. Automatic self-checking, data processing. 3.Automatically calculate the percentage deviation of resistance value of 5s, 15s and 30s. 3. Test rang 0-20k
  • INQUIRY




FUNCTION INTRODUCTION:

● Output current: 20mA~50A

● Measuring range: 0~20kΩ, the instrument can measure the DC resistance of the inductive products such as the transformers and instrument transformers.

● Auxiliary judgment of data stabilizing function. Automatically calculate the percentage deviation of resistance value of 5s, 15s and 30s, accurately determine the reliability of data, and prevent misreading data.

● The temperature conversion can be made according to the material(Copper/Aluminum) of the tested products, so that it is convenient to compare with the historical data.

● With transformer demagnetization function, it can reduce residual magnetism of transformer.

● With a permanent calendar, 99 sets of data storage, Chinese and English interface selection function, power failure without data loosing, mini printer and U disk interface.

● With 6 inch color touch LCD display screen.

● Dual RS485 (RS232) communication interface, with PC control software, the instrument can realize remote control measuring.

● With the discharging alarm by sound and the discharging indicating clearly function, the mis-operation can be reduced.

● With AC380V misconnection protection function,perfect back EMF protection function and anti-arcing function.

● It has the features of dustproof, shockproof, moisture-proof, high precision, good repeatability and portability.


TECHOLOGY SPECIFICATION


Tester Type

JYR20C/40C/50C

Configuration

20C

40C

50C

Output current

Automatic,20A, 10A, 5A, 2A, 1A, 200mA,100mA, 20mA

Automatic,40A, 20A, 10A, 5A, 2A, 1A, 200mA,100mA, 20mA

Automatic,50A, 20A, 10A, 5A, 2A, 1A, 200mA,100mA, 20mA

Range

020kΩ

Accuracy

0.2%±0.1µΩ

Min. resolution

0.01µΩ

Output voltage

DC30V

Operation power

AC220V±10%, 50 Hz±1Hz

Operation temperature

-2040

Relative humidity

80%RH, no dew

Volume

L420mm* W320mm * H200mm

Net Weight

14.8kg
