  • With TEV/Ultrasonic/UHF/HFCT four detect modes
  • Provides discharge amplitude and spectrum waveform of PD
  • Provide 2D and 3D map storage and readout functions
  • Android system, integrated 5 million pixel camera
  • Product description: Partial discharge detector is a multi-functional handheld instrument. It is based on TEV, ultrasonic, UHF and HFCT detection methods to test the partial discharge of HV equipment. It can read the part
  • INQUIRY

Partial discharge(PD) is a pulsed discharge that produces a series of physical phenomena and chemical changes such as light, sound, electrical and mechanical vibrations in and around electrical equipment. When insulation defects occur in high-voltage electrical equipment, partial discharge signals will be generated. Through the detection and analysis of these signals, it can be judged whether there are hidden dangers of insulation inside the high-voltage electrical equipment, and the further expansion of potential accidents can be prevented. So regular PD testing is critical as part of a condition-based management (CBM) regime. This enables operators to obtain baseline PD readings to assess insulation quality, locate PD activity and determine maintenance goals

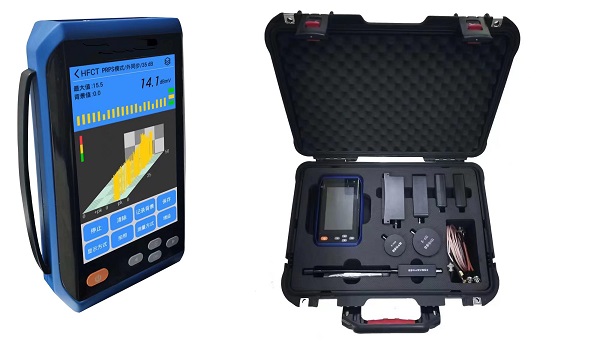

GTPD-92 partial discharge detector developed by our company is a multi-functional hand-held instrument. It is based on TEV, ultrasonic, UHF and high-frequency current(HFCT) detection methods to test the partial discharge of the HV equipment, and can read the partial discharge amplitude and spectrum. The waveform can provide storage and readout functions of two-dimensional and three-dimensional maps, etc., and can better evaluate the partial discharge of electrical equipment. partial discharge detector is suitable for partial discharge detection of electrical equipment such as GIS, switch cabinets, transformers and power cables. The equipment is portable and easy to operate, and all detections do not have any impact on the operation of high-voltage equipment. The product can observe the measurement signal in multiple cycles, identify the frequency of discharge, and analyze it through various modes, which can clearly determine the fault.

The partial discharge detector adopts a brand-new design and uses the currently popular Android system, which is easier to operate and use. In addition, it integrates 5 million pixel cameras to take pictures to facilitate inspection records; RFID is conducive to expanding the application of the Internet of things; internal integration discharge type library is provided to facilitate the comparison and verification of discharge conditions.



Host parameters

Detectable channels

4 Channels

1 TEV

1 US

1 UHF(Wireless, optional)

1 HFCT(Wireless, optional)

Sampling accuracy

12bit

synchronous mode

Internal synchronization, external synchronization, and photosynchronization

TEV

Detecting bandwidth

3M-100MHz

Detecting range

060dB

Detecting deviation

±2dB

resolution

1dB

Max.number of

pulses per cycle

720

Mini. Pulse frequency

10Hz

Output interface

Standard SMA connection host

Non-contact US

Center frequency

40kHz

Resolution

0.1uV

Accuracy

±0.1uV

Detecting range

0.5uV1mV

Output interface

Standard SMA connection host

Contact US

Center frequency

20kHz300kHz

Resolution

50 Ω

Accuracy

0.1mV

Detecting range

0.1mV1V

Output interface

Standard SMA connection host

UHF(optional)

Detecting bandwidth

300MHz1.5GHz

Output mode

BNC interface-Signal conditioning unit, wireless connection to the host

Receive mode

Antenna receive

Transmission mode

Coaxial cable

Detecting sensitivity

≤60dBm

HFCT(optional)

Detecting bandwidth

1M-30MHz

Transfer impedance

>5mV/mA (10MHz )

Output impedance

50 Ω

Detecting range

-20~80dB

Detecting deviation

±1dB

Accuracy

1dB

Output interface

BNC Interface-Signal conditioning unit, wireless connection to the host

Hardware

Display screen

A 5.0-inch TFT True color LCD screen

Resolution

800×480

Operation mode

Touch / button

Storage

TF Card

Sound interface

3.5 mm Stereo headphone jack

Power

DC-12V/2A DC Power

Extended function

USB-Type/500Mega pixel camera/RFID/Wi-Fi/Bluetooth

Power

Internal Power

battery powered4800mAH 7.4V

Working time

About 7 hours, and the filling time is about 3 hours

Dimension

L×W×H

235 mm×133 mm×48 mm

Weight

0.85 kg

Environment

Use ambient temperature

-20℃50℃

Storage

environment temperature

-40℃70℃

Humidity

10%-90%Non-condensation

Height above sea level

≤3000 m
