Insulating oil breakdown voltage (BDV) testing is the core experiment used to evaluate the dielectric strength and insulation performance of transformer oil. Strictly adhering to international and national standards such as IEC 60156 and ASTM D1816/D877, the test involves immersing a pair of electrodes with standard material and geometry into an oil sample at a fixed gap (typically 2.5 mm). The tester applies an AC voltage, increasing it at a constant rate (e.g., 2 kV/s) until the oil medium experiences an instantaneous dielectric breakdown and generates an arc discharge; the equipment then automatically records this critical breakdown voltage (kV), usually averaging multiple test runs to determine the oil's overall dielectric strength.
As a key indicator of oil health, the BDV value is highly sensitive to trace moisture, free carbon, metallic particles, and mechanical impurities. A low BDV reading indicates severe degradation of the oil's insulation properties, which can easily trigger catastrophic faults like internal partial discharges or inter-turn short circuits during high-voltage operation. Consequently, routine BDV monitoring allows operation and maintenance (O&M) personnel to detect oil contamination or aging early, guiding critical decisions on whether to perform oil filtration, reclamation, or a complete oil replacement to ensure the safe, stable, and long-term operation of power transformers.
In the fields of transformer manufacturing (OEMs), power utility operation and maintenance (O&M), and third-party testing, data accuracy and field reliability are of paramount importance. The following are the top 5 globally recognized manufacturers of insulating oil BDV testers (listed in no particular order), which have become the benchmark choices for the global power industry by virtue of their exceptional measurement precision, strict compliance with international standards, and field-proven industrial durability. These leading brands deliver highly accurate, fully compliant data that effectively supports equipment commissioning, field operation, and preventative maintenance workflows worldwide.
Founding Year: 1889

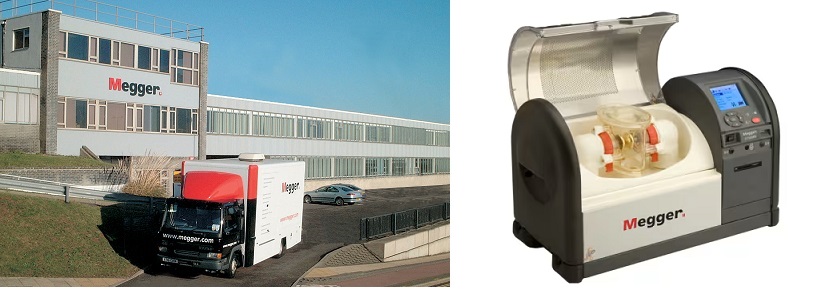

Megger has stood at the forefront of the electrical testing industry for well over a century, famously originating the brand name that has become synonymous with insulation resistance measurement.Headquartered in the United Kingdom, the company maintains manufacturing facilities and technical support hubs worldwide.
In the field of liquid insulation diagnostics, Megger provides elite-tier equipment designed to evaluate the dielectric strength of insulating fluids used in transformers, circuit breakers, and switchgear.Its flagship automated oil test sets offer fully automatic breakdown voltage determinations, integrating advanced features like optical cell detection, precise temperature tracking, and automatic oil sample stirring.Built to withstand rugged on-site environments while maintaining precise laboratory repeatability, Megger instruments strictly adhere to rigorous international testing matrices including IEC 60156 and ASTM standards, solidifying its role as an indispensable partner for utilities and high-voltage assets globally.
Core Business Scope: Electrical insulation testing, power transformer diagnostics, cable fault location, and oil testing solutions.
Key Features & Strengths: Historic pioneer in insulation testing; exceptional reliability; global sales, service, and training calibration network; laboratory-grade field accuracy.
Flagship Products: OTS60PB & OTS80PB (Portable Oil Test Sets), OTS80AF & OTS100AF (Laboratory Automated Oil Test Sets).
Official Website: www.megger.com
Official Email: info@megger.de (Contact via country-specific regional channels or the main German hub).
Founding Year: 1945

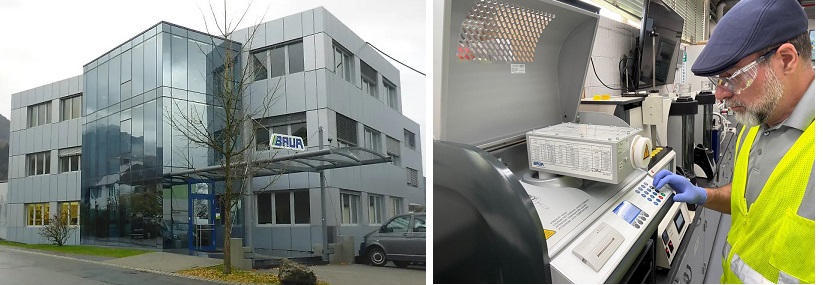

Based in Sulz, Austria, BAUR GmbH is globally renowned for engineering high-precision diagnostic systems utilized in electrical power networks and plant operations.For over 80 years, the company has heavily invested in researching power cable reliability and insulating liquid preservation, making it a benchmark brand for standard-compliant quality controls.
BAUR’s insulating oil testing technology is particularly famous for its safety architecture and extreme accuracy. Its breakdown voltage testers utilize specialized switch-off dynamics that measure the exact microsecond of breakdown, preventing carbonization of the oil sample and protecting the test vessels. Beyond breakdown testing, BAUR is a market leader in dielectric dissipation factor (Tan Delta) and specific resistivity metrics, providing operators with a multidimensional look at aging, moisture, and chemical contamination before asset failures manifest.
Core Business Scope: Cable testing and diagnostics, cable fault location, and high-precision insulating oil testing.
Key Features & Strengths: Unmatched metrological precision; proprietary rapid breakdown detection technology; exceptional build quality; pioneering contribution to standard-compliant automated fluid analysis.
Flagship Products: DTA 100 C (Laboratory Oil Tester), DPA 75 C (Portable Oil Tester), DTL C (Oil Tan Delta, Dissipation Factor, and Resistivity Test Set).
Official Website: www.baur.eu
Official Email: office@baur.at
Founding Year: 2001
Headquartered in Klaus, Austria, b2 electronic GmbH is an internationally acting innovator specializing in high-voltage testing solutions.Though younger than some historic industry giants, the company has rapidly carved out an impressive global footprint, distributing its cutting-edge equipment to electrical power networks in more than 120 countries.

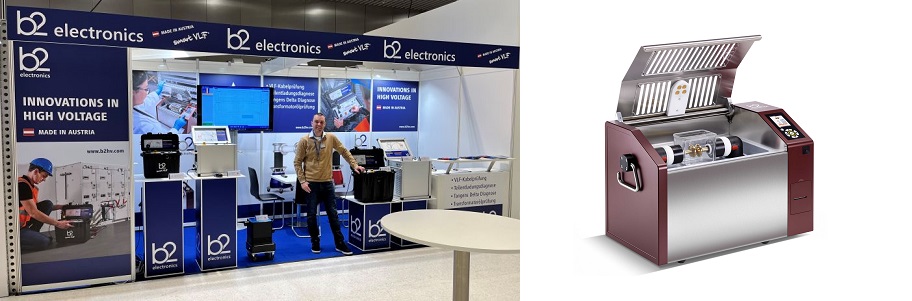

The company's liquid dielectric product line, encapsulated by the BA series, focuses heavily on modern, user-friendly efficiency. These automated breakdown voltage testers are among the lightest and most compact systems available on the market, uniquely optimizing them for mobile field operations and tight substation spaces. Featuring bright color displays, integrated printers, Bluetooth communication, and pre-programmed international standards, b2 electronic’s instruments allow operators to conduct rapid, error-free "set-and-forget" oil analysis, reliably mitigating risks within the global energy grid.
Core Business Scope: VLF (Very Low Frequency) cable testing, cable diagnostics, and transformer oil testing instruments.
Key Features & Strengths: High technological innovation; ultra-lightweight and compact product profiles; seamless digital user interfaces; cost-efficient yet highly reliable asset tracking.
Flagship Products: BA60 & BA75 & BA80 & BA100 (Automatic Insulating oil breakdown voltage testers).
Official Website: b2hv.com
Official Email: info@b2hv.com
Founding Year: 2004
Based in Ukraine, Kharkov Energo Pribor Ltd. (KEP) has grown into a vital Eastern European manufacturer of complex electrical testing systems, laboratory equipment vans, and portable diagnostic instruments. The enterprise serves a diverse global client base consisting of electrical utilities, high-voltage laboratories, and heavy manufacturing heavyweights.

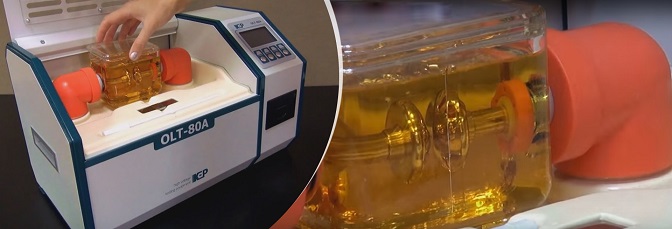

The company's OLT series of oil breakdown voltage testers is highly regarded for its industrial rigor and measurement accuracy. A key technical feature of KEP’s oil testers is their ability to generate a pure, symmetric sinusoidal output wave completely independent of the input supply grid's distortions. Furthermore, the integrated KEP software suite features advanced slew monitoring, which actively corrects the rate of change of the output signal. This engineering focus minimizes breakdown energy while capturing highly repeatable data across pre-fed templates like IEC 60156 and ASTM D1816, complete with automatic magnetic stirring and detailed PDF test report generation.
Core Business Scope: High-voltage cable testing vans, resonant test sets, surge generators, and automated liquid dielectric testers.
Key Features & Strengths: Industrial-grade ruggedness; precise true sine wave generation; advanced "slew monitoring" signal correction; powerful integrated reporting software suites.
Flagship Products: OLT-80 & OLT-100 (Automatic oil breakdown voltage testers).
Official Website: kepte.com(Operating globally under the 'Kharkov Energo Pribor' / 'KEP' banner).
Official Email: info@kep.ua
Founding Year: 2009
Baoding Kingrun Transformer Instrument Co., Ltd., situated within China's historic power equipment manufacturing hub in Baoding, is a premier high-tech enterprise dedicated solely to power transformer diagnostic equipment. By matching stringent international engineering standards with rapid R&D iteration, Kingrun has earned deep integration among major electrical utility networks, large manufacturing lines, and international engineering projects.

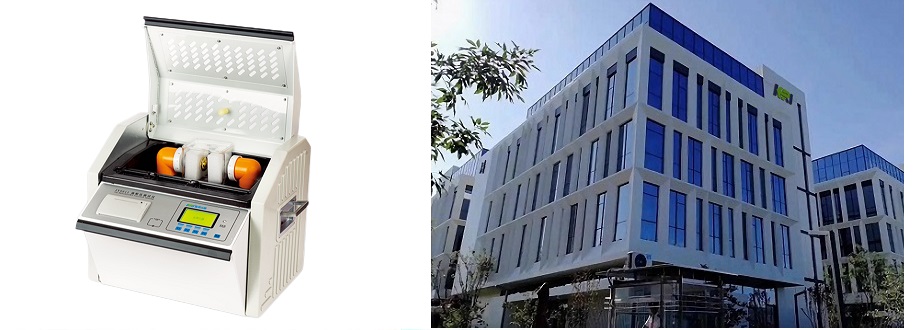

Kingrun’s flagship liquid diagnostic instrument, the JY6611, highlights the company's commitment to measurement integrity. It utilizes an electronic inverter sine wave generator to feed stable, high-quality voltage to the oil sample, ensuring results are unaffected by local grid variations or waveform distortions. Crucially, the tester incorporates advanced breakdown voltage control technology (RBM) that suppresses discharge energy to an absolute minimum during breakdown. This prevents the oil sample from carbonizing or contaminating the test vessel across multiple automated test sequences, providing field technicians with precise, highly reproducible measurements.
Core Business Scope: Power transformer testing instruments, including Turns Ratio (TTR), DC Winding Resistance (DCR), Tan Delta, and Insulating oil BDV testers.
Key Features & Strengths: Precision engineering focusing entirely on transformer health; advanced electronic inverter sine wave generators; proprietary low-energy breakdown voltage control (RBM); multilingual multi-market support.
Flagship Products: JY6611 (Automatic 0–80kV / 0–100kV Insulating oil breakdown voltage tester).
Official Website: www.kritester.com(Baoding Kingrun Transformer Instrument Co., Ltd.)
Official Email: info@kritester.com
