Tan Delta (tan δ), also known as the dissipation factor (DF) or insulation power factor, refers to the ratio of active power loss to reactive capacitive power when an insulating medium is subjected to an alternating electric field. Mathematically, it is expressed as:
As a core indicator in the preventive maintenance and diagnostic testing of high-voltage equipment—such as power transformers, instrument transformers, and bushings—the tan delta parameter intuitively reflects insulation degradation caused by moisture ingress, thermal aging, void cracking, and oil contamination. A sudden or significant increase in tan delta provides an early warning of potential insulation defects, allowing operators to prevent catastrophic insulation breakdown and short-circuit faults.
When a power-frequency AC voltage is applied across the test object, the insulation system can be represented by an equivalent parallel R-C network. In an ideal capacitor, the capacitive current leads the voltage by exactly 90°. However, due to dielectric losses, a resistive leakage current flows in phase with the voltage, shifting the total current vector.
The angle between the total current vector and the ideal capacitive current vector is defined as the loss angle, δ. By sampling and analyzing the phase difference between the applied voltage and the resulting total current, the test instrument calculates the dissipation factor as the ratio of the resistive (loss) current to the capacitive current:
Tan δ= IR / IC
Finally, the insulation integrity is assessed by benchmarking the measured tan delta values against international standard limits (such as IEEE or IEC codes) and historical baselines
Development History: Founded in the late 1800s by Sydney Evershed in the UK, Megger is one of the oldest names in electrical testing, historically pioneering the insulation resistance tester (the "Megger"). Over more than a century, it expanded significantly through organic engineering growth and aggressive acquisitions (such as SebaKMT, Baker Instruments, and States).
Core Businesses: Manufacture of high-voltage (HV) cable fault location, testing and diagnostics, protective relay test systems, transformer diagnostics, and low-voltage installation equipment.
Industry Position & Key Regions: An absolute global Tier-1 industry leader with a footprint spanning Europe, North America, the Middle East, and Asia-Pacific.
Application Areas: Crucial for assessing insulation degradation, moisture ingress, and aging in power transformers, HV bushings, underground transmission/distribution cables, and generator stator windings.
Core Tan Delta Testing Products :
Delta4000 Series: A 12 kV automated insulation power factor/dissipation factor test system designed for primary substation equipment.
VLF Sine 45 / TDS NT Series: Integrated VLF (Very Low Frequency) and Tan Delta diagnostics system optimized for medium-voltage power cable networks.
Website: https://www.megger.com
Email Address: info@megger.com
Development History: Founded in 1984 by Rainer Aberer in Austria, OMICRON fundamentally shifted the industry by developing the first lightweight, software-driven microcomputer relay test sets (the CMC series) in 1990. It moved firmly into high-voltage primary equipment diagnostics in the early 2000s.
Core Businesses: High-precision test, assessment, and monitoring solutions for secondary electrical equipment (protection and automation) and primary HV assets.
Industry Position & Key Regions: A dominant global technology benchmark brand. Based in Europe, it dictates technical assessment protocols widely across North America, Latin America, and the APAC region.
Application Areas: Lab-grade precision diagnostics of dissipation factor/capacitance on transformers, high-voltage bushings, CTs/PTs, rotating machinery, and complex subsea or buried transmission systems.
Core Tan Delta Testing Products :
Website: https://www.omicronenergy.com
Email Address: info@omicronenergy.com

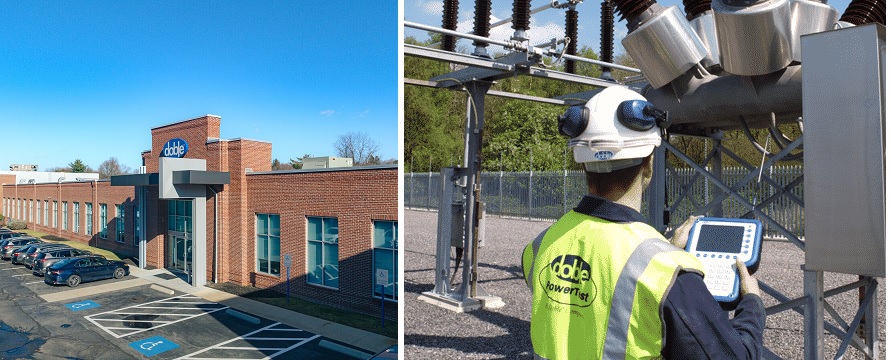

Development History: Founded by Frank Doble in 1920 in Massachusetts, USA, the company pioneered the concept of field-testing electrical insulation. Doble famously established the "Doble Client Committee" system to crowdsource equipment diagnostic data, establishing a massive statistical baseline for insulation assessment.
Core Businesses: High-voltage testing equipment, online grid asset condition monitoring systems, insulation oil testing, advisory consulting services, and asset management software.
Industry Position & Key Regions: The gold standard for power factor testing in North America, holding nearly complete market presence among US and Canadian electrical utilities, with deep global integration via parent company ESCO Technologies.
Application Areas: Comprehensive off-line insulation integrity assessments of transformers, generators, circuit breakers, and sub-components via standard 10kV line-frequency power factor analysis.
Core Tan Delta Testing Products :
M4100: The industry’s flagship Automated Insulation Analyzer used globally for power factor and dissipation factor field testing.
DTA Software Ecosystem: Software used in tandem with hardware to benchmark field $\tan\delta$ metrics against global database norms.
Website: https://www.doble.com
Email Address: customerservice@doble.com / info@doble.com
Development History: Based in Manassas, Virginia, USA, HVT operates primarily as an elite distributor, service partner, and systems integrator. It was formed by prominent high-voltage testing engineers to bridge top-tier European precision manufacturing partners (such as BAUR and b2 electronics) with the strict demands of North American infrastructure.
Core Businesses: Supply, customization, and deployment of High Voltage Test equipment (AC/DC hipots, VLF, impulse systems) and Electromagnetic Compatibility (EMC) testing.
Industry Position & Key Regions: Acts as a premier Tier-1 specialized solutions provider within the United States, Canada, and Central America, filling the technical advisory gap for utility service providers.
Application Areas: Medium- to high-voltage cable testing, cable aging profiling, and automated dielectric oil dissipation analysis for municipal grids and industrial installations.
Core Tan Delta Testing Products (Max 2):
Midas micro 2883: High-performance, portable VLF generators with integrated Tan Delta diagnostic hardware, supplied and supported by HVT.
Website: https://www.hvtechnologies.com
Email Address: sales@hvtechnologies.com
Development History: Established in the USA to address the specific technical demands of underground cable testing, the company carved out a niche by making complex Very Low Frequency (VLF) AC testing and dielectric loss measurements rugged, digital, and simple for field crews.
Core Businesses: Specializes intensely in medium- and high-voltage VLF equipment, cable tan delta diagnostics, partial discharge (PD) testing instruments, and insulating fluid test blocks.
Industry Position & Key Regions: A prominent, trusted market challenger and specialist with concentrated market share in North America, South America, and a growing international footprint among specialized engineering testing firms.
Application Areas: Non-destructive assessment and degradation profiling of aging polyethylene (XLPE, EPR) and paper-insulated lead-covered (PILC) electrical utility cable systems.
Core Tan Delta Testing Products :
TD90-2: A dynamic, high-voltage portable cable Tan Delta diagnostics system configured for field environments.
HVA Series Hipots: Microprocessor-controlled, multi-functional VLF test systems that integrate directly with Tan Delta output peripherals.
Website: https://www.hvdiagnostics.com
Email Address: service@hvdiagnostics.com
Development History: Headquartered in Manchester, UK, Monitra emerged to modernize the heavy machinery asset lifecycle sector by providing modern diagnostic packages, heavy-industry engineering diagnostics, and advanced processing software to monitor insulation trends.
Core Businesses: On-site asset health testing solutions, high-voltage rotating machine analysis, partial discharge surveillance, and offline dissipation testing.
Industry Position & Key Regions: A specialized regional engineering elite and service provider active in the United Kingdom, Europe, and specific Middle Eastern utility frameworks.
Application Areas: Offline and periodic condition monitoring of large-scale generator stators, hydroelectric plant machinery, major hospital distribution networks, and critical industrial motor fleets.
Core Tan Delta Testing Products :
Atlas by Monitra™: A comprehensive cloud-based data tracking platform designed to benchmark and map asset health, including historical tan delta and PD variations.
Monitra Stator TD/PF Testing Kit: Tailored off-line diagnostic configurations specialized for checking stator winding insulation stability under multi-step voltage stress.
Website: https://www.monitra.com
Email Address: info@monitra.com (or through their UK regional portal monitra.co.uk)
Development History: Founded as an instrumentation distributor, Mitchell Instruments grew over several decades into a prominent multi-brand catalog house and supply hub for the US electrical testing sector. It incorporates an ISO/IEC 17025 accredited calibration laboratory.
Core Businesses: Distribution, logistics, calibration, and support of massive inventories of electrical safety equipment, arc flash protection gear, and high-voltage test units.
Industry Position & Key Regions: A major national distributor and supply aggregator across the United States and global export markets, serving as an intermediary partner for premium equipment.
Application Areas: Procurement pipelines for municipal utility technicians, facility managers, and independent testing contractors requiring rapid deployable Tan Delta and VLF test solutions.
Core Tan Delta Testing Products:
HVI-TD-65E / TD-34E (Distributed): Heavy-duty, high-voltage VLF Tan Delta cable diagnostic systems sourced via manufacturing partnerships with entities like High Voltage Inc.
Website: https://www.mitchellinstrument.com
Email Address: sales@mitchellinstrument.com
Development History: Based out of the Torch High-Tech Industrial Park in Baoding, China, Kingrun was established to focus on automated transformer instrumentation. By implementing modern digital signal processing (DSP) and fast Fourier transforms (FFT) into local designs, it grew rapidly over the past two decades.
Core Businesses: Transformer turns ratio (TTR) testers, DC winding resistance, partial discharge detectors, and insulating oil testers.
Industry Position & Key Regions: A highly prominent high-efficiency, cost-effective manufacturer with extensive market depth across Mainland China, Southeast Asia, Central Asia, Eastern Europe, and Africa.
Application Areas: Factory acceptance testing (FAT), substation commissioning, and preventative maintenance routines tracking insulating oil aging and transformer winding degradation.
Core Tan Delta Testing Products :
JYC 10/12kV Tan Delta Tester: An integrated frequency-conversion dissipation factor tester featuring automated anti-interference mechanisms for substation deployment.
GTD-61A : Fully automated transformer insulating oil Tan Delta and volume resistivity test apparatuses using induction heating.
Website: https://www.kritester.com
Email Address: info@kritester.com / support@kritester.com
